1、Common Application Scenarios
Papermaking Industry
Used in calenders to adjust the spacing between the bottom roll and the calender roll, thereby controlling the gloss and smoothness of paper.
Printing Industry
In flexographic die-cutting presses, the lamination pressure between films and paper is regulated through adjustment of the bottom roll, ensuring precise die-cutting results.
2、Product Advantage:
The die-cutting unit assembly features a three-roll structure with a combined accuracy within +/-0.02mm.
The die-cutting bottom roll is adjustable

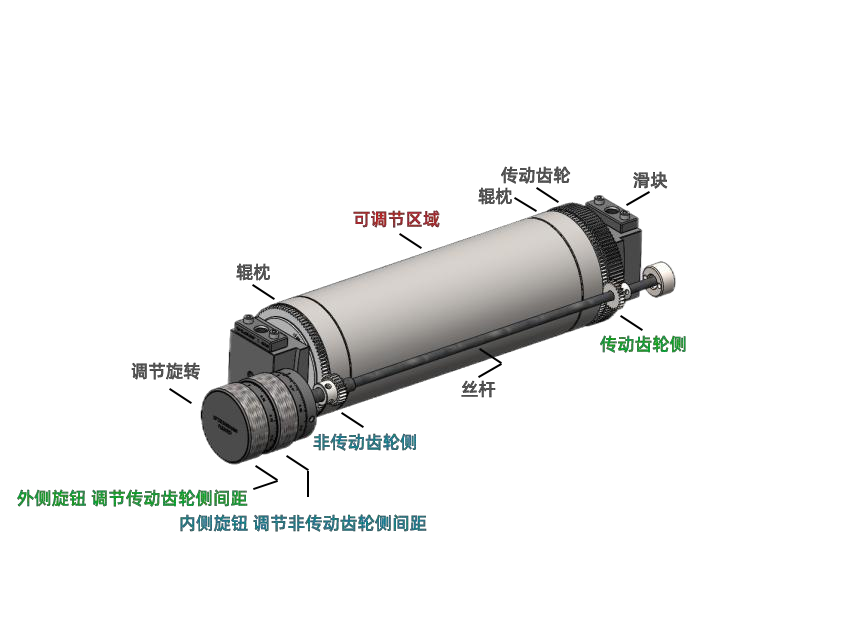

3、Adjustable Modular Structure Composition
Visualized precise pressure control significantly extends the lifespan of expensive cutting tools and greatly reduces tool replacement costs.
Quick-Change Module: Minimizes downtime, ensures stable pressure, and guarantees continuous production.
Long-lasting Lubrication System: Ensures smooth long-term operation, reduces maintenance frequency, and maximizes equipment uptime.
Precision Fine-tuning Knob (1µm/division) with Reliable Locking: Enables sub-micron gap adjustment and secure locking after adjustment, eliminating pressure drift.
Smart Connectivity Interface: Seamlessly integrates with automated production lines, enhancing overall production efficiency.
Three-Roll Structure
Industry-leading stability: The patented three-roll structure design reduces operational vibration, with single-roll accuracy of ±1μm and combined accuracy ≤3μm, laying the foundation for ultra-precision die-cutting.
High-Precision Components
Robust Assurance: Equipped with high-precision ground gears and imported high-precision bearings, ensuring long-term stability and reliability of die-cutting accuracy while eliminating quality fluctuations caused by component deformation.
4、Building the Precision-Adjustable Core
